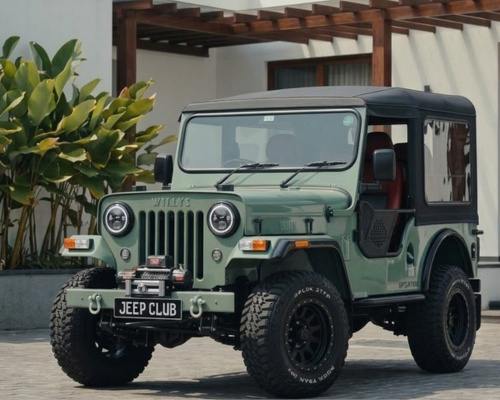

The Ultimate Guide to Restoring a Classic Mahindra CJ 500 DI

A classic Mahindra CJ 500 DI restoration is more than a paint job and a fresh set of seats. For many owners, these Jeeps represent a particular period of Indian automotive history, mechanical simplicity and old-school 4x4 character.

A proper restoration starts with understanding what is already there: the chassis, body, drivetrain, electrical system, interior, previous modifications and the condition of the original components.

The CJ 500 DI is also an interesting part of Mahindra's Jeep history. Mahindra's relationship with the Jeep began with CKD Jeeps from Willys-Overland in the late 1940s, before Mahindra went on to manufacture Jeep-based vehicles in India.

For owners considering a restoration today, the biggest question is not simply "How much will it cost?" It is:

What kind of Jeep do you want when the restoration is finished?

This guide explains the restoration process step by step and helps you understand the difference between an original-style restoration and a more modern custom makeover.


Quick Answer: How Do You Restore a Mahindra CJ 500 DI?

A professional CJ 500 DI restoration normally starts with:

  1. Complete vehicle inspection
  2. Documentation and identification of the existing vehicle
  3. Chassis inspection
  4. Body and panel assessment
  5. Engine and drivetrain inspection
  6. Brake and steering inspection
  7. Suspension assessment
  8. Electrical-system inspection
  9. Body repair and fabrication
  10. Paint preparation and painting
  11. Interior restoration
  12. Wheel, tyre and exterior finishing
  13. Final mechanical inspection
  14. Road testing and final detailing

The exact work depends heavily on the condition of the individual Jeep. Two CJ 500 DI vehicles of similar age can require completely different levels of restoration.


Understanding the Mahindra CJ 500 DI

The CJ 500 DI belongs to an important period in Mahindra's Jeep development. A specialist Mahindra-history source records the CJ 500 DI as using Mahindra's MDI2500 direct-injection diesel engine and describes production during the early-to-mid 1990s.

Historical references also show CJ 500 DI examples from the 1990s, including a 1994 vehicle listed in an auction record.

However, when restoring an individual Jeep, the vehicle itself should always be treated as the source of truth.

Previous owners may have changed:

  • Engine
  • Gearbox
  • Transfer case
  • Axles
  • Suspension
  • Body panels
  • Seats
  • Wiring
  • Lights
  • Wheels and tyres
  • Bumpers
  • Steering components
  • Fuel-system components

Therefore, restoration should begin with inspection rather than assumptions based only on the model name.


Why Restore a Classic Mahindra CJ 500 DI?

There are several reasons owners choose to restore an old Mahindra Jeep.

1. Preserving the Jeep's character

A classic Jeep has a visual and mechanical character that is very different from a modern SUV.

For an owner interested in preservation, keeping the vehicle's original appearance and proportions may be the main objective.

2. Bringing an old vehicle back into usable condition

Some restoration projects begin with a Jeep that has been sitting unused for years.

The objective may be to make the vehicle mechanically sound and usable again while retaining its classic appearance.

3. Creating a personalized 4x4

Other owners want something different.

They may choose:

  • Larger off-road tyres
  • Custom seats
  • Modern lighting
  • Updated electrical systems
  • Custom bumpers
  • Suspension upgrades
  • Modern soft tops
  • Custom paint
  • Additional recovery equipment

This becomes a restoration plus customization project rather than a strict original restoration.


Inspect the Jeep Before Starting Work

This is the most important stage.

Do not begin by removing the body or ordering parts.

First, document the Jeep as it currently exists.

Inspect:

  • Chassis
  • Body shell
  • Floor
  • Firewall
  • Bonnet
  • Fenders
  • Doors
  • Windshield frame
  • Wheel arches
  • Suspension
  • Axles
  • Steering
  • Brakes
  • Engine
  • Gearbox
  • Transfer system
  • Propeller shafts
  • Electrical system
  • Fuel system
  • Cooling system
  • Interior

Take photographs from multiple angles.

Also record existing modifications.

This inspection provides the foundation for the restoration quotation and work plan.


Decide Your Restoration Philosophy

Before fabrication begins, decide what you actually want.

There are two common approaches.

Original-Specification Restoration

The goal is to retain the Jeep's classic character.

This approach can focus on:

  • Original-style body
  • Period-correct appearance
  • Traditional exterior design
  • Original-style interior
  • Appropriate wheels and tyres
  • Original-style electrical equipment
  • Minimal visible modifications

The exact level of originality depends on the condition of the vehicle and the availability of suitable components.


Modern Custom Makeover

The second approach keeps the basic Jeep identity while introducing selected modern upgrades.

Possible areas include:

  • Updated seating
  • Improved lighting
  • Custom wheels and tyres
  • Modern suspension components
  • Custom bumpers
  • Recovery equipment
  • Updated electrical system
  • Modern soft top
  • Improved interior finish

The result is a Jeep that visually retains its classic identity but reflects the owner's preferred style.

Neither approach is automatically suitable for every owner.

The right choice depends on the intended use, condition of the Jeep and restoration objective.


Chassis Inspection and Restoration

The chassis is the foundation of the vehicle.

Before spending heavily on paint or interior work, inspect the chassis carefully.

Look for:

  • Corrosion
  • Cracks
  • Previous welding
  • Poor repairs
  • Distortion
  • Mounting-point damage
  • Accident damage
  • Structural modifications

Any structural repair should be approached carefully and professionally.

A beautiful body sitting on a poorly inspected chassis is not a complete restoration.


Body Shell and Panel Restoration

Classic Jeep bodywork often requires significant attention.

Inspect:

  • Front grille
  • Bonnet
  • Fenders
  • Side panels
  • Floor panels
  • Door frames
  • Rear body
  • Wheel arches
  • Windshield frame

Some vehicles may need panel repair.

Others may require replacement or fabrication of damaged sections.

The important principle is to determine what can be properly repaired before deciding what needs replacement.


Engine and Mechanical Inspection

The engine should be inspected before deciding whether it needs a complete rebuild.

Depending on condition, the workshop may evaluate:

  • Compression
  • Oil pressure
  • Cooling system
  • Fuel system
  • Injection system
  • Engine mounts
  • Oil leaks
  • Cooling leaks
  • Starting behaviour
  • Exhaust condition

If an engine overhaul is required, the actual scope should be determined after inspection.

Do not assume that every old CJ requires the same mechanical work.


Gearbox, Transfer System and Axles

A classic 4x4 restoration should include a drivetrain inspection.

Check:

  • Gearbox operation
  • Clutch
  • Transfer system
  • Propeller shafts
  • Universal joints
  • Front axle
  • Rear axle
  • Differential condition
  • Oil leaks
  • Bearings
  • Seals

The objective is to understand whether components need:

Inspection → Servicing → Repair → Rebuild → Replacement

rather than automatically replacing everything.


Steering and Brake System

This is an area where restoration should focus on function rather than appearance.

Inspect:

Steering

  • Steering box
  • Linkages
  • Tie rods
  • Ball joints
  • Wheel bearings
  • Alignment

Brakes

  • Master cylinder
  • Wheel cylinders
  • Brake lines
  • Hoses
  • Drums/discs, depending on configuration
  • Brake shoes/pads
  • Parking brake

A restored Jeep should not be considered finished simply because the body looks new.

The mechanical systems must also be properly checked before road use.


Suspension, Wheels and Tyres

The suspension setup should match the intended use.

For an original-style restoration, the owner may prefer a period-correct appearance.

For an off-road-oriented build, the owner may choose an upgraded suspension and different wheel-and-tyre combination.

Consider:

  • Suspension condition
  • Bushes
  • Shackles
  • Springs
  • Shock absorbers
  • Wheel size
  • Tyre size
  • Clearance
  • Steering geometry
  • Overall stance

Avoid choosing wheels and tyres purely for appearance.

The combination should be compatible with the vehicle's actual configuration.


Electrical Restoration

Old wiring is one of the areas that should never be ignored.

Inspect:

  • Main wiring harness
  • Battery connections
  • Alternator/generator system
  • Starter circuit
  • Headlights
  • Indicators
  • Tail lights
  • Brake lights
  • Horn
  • Instrument cluster
  • Switches
  • Fuses
  • Earthing

If the existing wiring has been repeatedly modified over the years, a systematic electrical restoration may be necessary.

The goal is a clean, properly routed and serviceable electrical system.


Body Preparation and Paint

Once fabrication and structural work are completed, the Jeep can move toward paint preparation.

Typical stages include:

Body repair → Surface preparation → Primer → Sanding → Paint → Finishing → Reassembly

Paint colour is one of the most visible decisions in a restoration.

Owners may choose:

  • Original-style colour
  • Factory-inspired colour
  • Classic green
  • Military-inspired shades
  • Modern automotive colours
  • Custom colours

If originality matters, research the appropriate period appearance before selecting a colour.


Interior Restoration

The interior can completely change the character of a restored Jeep.

Possible areas include:

  • Front seats
  • Rear seats
  • Seat covers
  • Door panels
  • Dashboard
  • Steering wheel
  • Floor
  • Carpeting or rubber flooring
  • Instrumentation
  • Interior trim

For an original-style project, keep the design simple and period appropriate.

For a custom project, the owner may choose premium upholstery, modern seat designs and additional comfort features.


Soft Top, Hardtop and Weather Protection

The roof arrangement should be selected according to how the Jeep will be used.

Possible choices include:

  • Original-style canvas/soft top
  • Replacement soft top
  • Custom soft top
  • Hardtop
  • Seasonal open configuration

Before installation, check the condition and alignment of the windshield frame, mounting points and body structure.


Exterior Accessories

This is where the owner's personality can become visible.

Depending on the restoration plan, accessories can include:

  • Front bumper
  • Rear bumper
  • Winch
  • Recovery points
  • Side steps
  • Spare wheel carrier
  • Mirrors
  • Auxiliary lights
  • Tow equipment
  • Off-road accessories

However, accessories should support the build rather than overwhelm the classic Jeep design.

How Much Does a CJ 500 DI Restoration Cost?

There is no single reliable price for every Mahindra CJ 500 DI restoration.

The cost can change substantially depending on:

  • Chassis condition
  • Body condition
  • Engine condition
  • Gearbox condition
  • Axles
  • Suspension
  • Electrical system
  • Body fabrication
  • Paint requirements
  • Interior
  • Wheels and tyres
  • Parts availability
  • Level of customization

Even current public listings for restored CJ 500 DI Jeeps show substantially different asking prices and restoration scopes, illustrating why an individual inspection is more useful than applying a generic restoration price.

For an accurate quotation, the vehicle should be inspected before the restoration scope and parts requirements are finalized.


Common CJ 500 DI Restoration Mistakes

1. Starting with Paint

A new paint job cannot fix a mechanically poor Jeep.

Complete structural and mechanical assessment first.

2. Ignoring Previous Modifications

Many old Jeeps have passed through several owners.

Previous modifications need to be documented before restoration begins.

3. Choosing Parts Only by Appearance

A component may look correct but still require fitment verification.

4. Changing Too Many Things at Once

A restoration can lose its original character if every component is replaced without a clear plan.

5. Ignoring Electrical Work

Old or poorly modified wiring can become a major source of future problems.

6. Choosing Oversized Wheels Without Checking Compatibility

Wheel and tyre selection should consider clearance, steering, suspension and intended use.

7. No Clear Restoration Objective

Decide whether the Jeep is intended for:

  • Original-style ownership
  • Weekend driving
  • Touring
  • Off-road use
  • Display
  • A personalized custom build

That decision affects almost everything else.


What Should You Decide Before Starting Your Restoration?

Before handing over the Jeep, answer these questions:

Do you want an original-looking Jeep?

If yes, prioritize preservation.

Do you want a modern custom Jeep?

If yes, define the modifications before fabrication begins.

Is the Jeep going to be used regularly?

Mechanical reliability and usability become important considerations.

Is it mainly a collector/project vehicle?

Originality may have greater importance.

Do you already have specific parts?

Make a complete parts list before ordering additional components.


Why a Detailed Inspection Matters

A restoration quotation prepared without inspecting the vehicle can change considerably once the Jeep is dismantled.

Hidden issues can include:

  • Corrosion beneath paint
  • Previous accident repairs
  • Structural welding
  • Worn mechanical components
  • Electrical modifications
  • Damaged mounting points
  • Incorrect replacement parts

This is why a professional restoration process should be based on the actual condition of the Jeep, not simply its registration year or model name.


Jeep Restoration in Coimbatore

For owners searching for Jeep restoration in Coimbatore, Jeep Club India works with classic Jeep restoration, 4x4 customization, fabrication and related parts and accessories.

The restoration approach can be planned around the owner's preferred direction:

Original specification restoration

or

Updated custom makeover

The exact scope can be discussed after inspecting the vehicle and identifying the work required.

How much does a Mahindra CJ 500 DI restoration cost?

Should the chassis be inspected before body restoration?

Yes. The chassis is fundamental to the vehicle, so structural condition should be assessed before major cosmetic work.

Can I restore the Jeep and add off-road modifications?

A restoration can be combined with selected off-road modifications. The modifications should be planned around the intended use and the vehicle's configuration.

How long does a CJ 500 DI restoration take?

There is no fixed duration for every project. The timeline depends on vehicle condition, parts availability, fabrication requirements, mechanical work and the agreed restoration scope.

Can Jeep Club India provide a restoration quotation?

A detailed quotation should be based on inspection of the actual vehicle and the restoration approach selected by the owner.

Can I choose between original restoration and a modern makeover?

Yes. These are two different restoration directions and should be discussed before major work begins.

Where is Jeep Club India located?

Jeep Club India is in Peelamedu, Coimbatore, Tamil Nadu, India.



Jeep Club India

Peelamedu, Coimbatore, Tamil Nadu, India

📞 +91 9786576655
📞 +91 9994276655

🌐 www.jeepclub.in
🛒 www.jeepstoreindia.com



Related Jeep Restoration & Classic 4x4 Builds

5 Reasons the Mahindra Major is Still the King of Analog Off-Roading | Jeep Club India

5 Reasons the Mahindra Major is Still the King of Analog Off-Roading in IndiaModern 4x4 SUVs are packed with independent front suspensions, traction control modules, ECU sensors, and touchscreens. They are comfortable, fast, and capable. But when you are axle-deep in the clay mud of the Western Ghats, miles away from cell service, a failed wheel speed sensor can throw a modern rig into "limp mode" and leave you stranded.This is exactly why a massive segment of hardcore Indian off-roaders, estate owners, and overlanders are returning to the classics. And at the absolute pinnacle of this analog revival sits one

Expert Classic Jeep Restoration Services in Coimbatore: Jeep Club India Builds

Expert Classic Jeep Restoration Services in Coimbatore: Jeep Club India BuildsThe classic Jeep—whether it’s a Willys CJ3B, a Mahindra MM540, a rugged CJ 500 DI, or the legendary Mahindra Major—is more than just a vehicle in India. It is a piece of analog mechanical history. These are the machines that built estates in the Nilgiris, forged paths through the dense Western Ghats, and continue to dominate the Indian off-road scene today. However, time, monsoon moisture, and decades of trail abuse eventually take their toll.When your floorboards rot away, your chassis begins to crack, and your engine loses compression, you cannot
